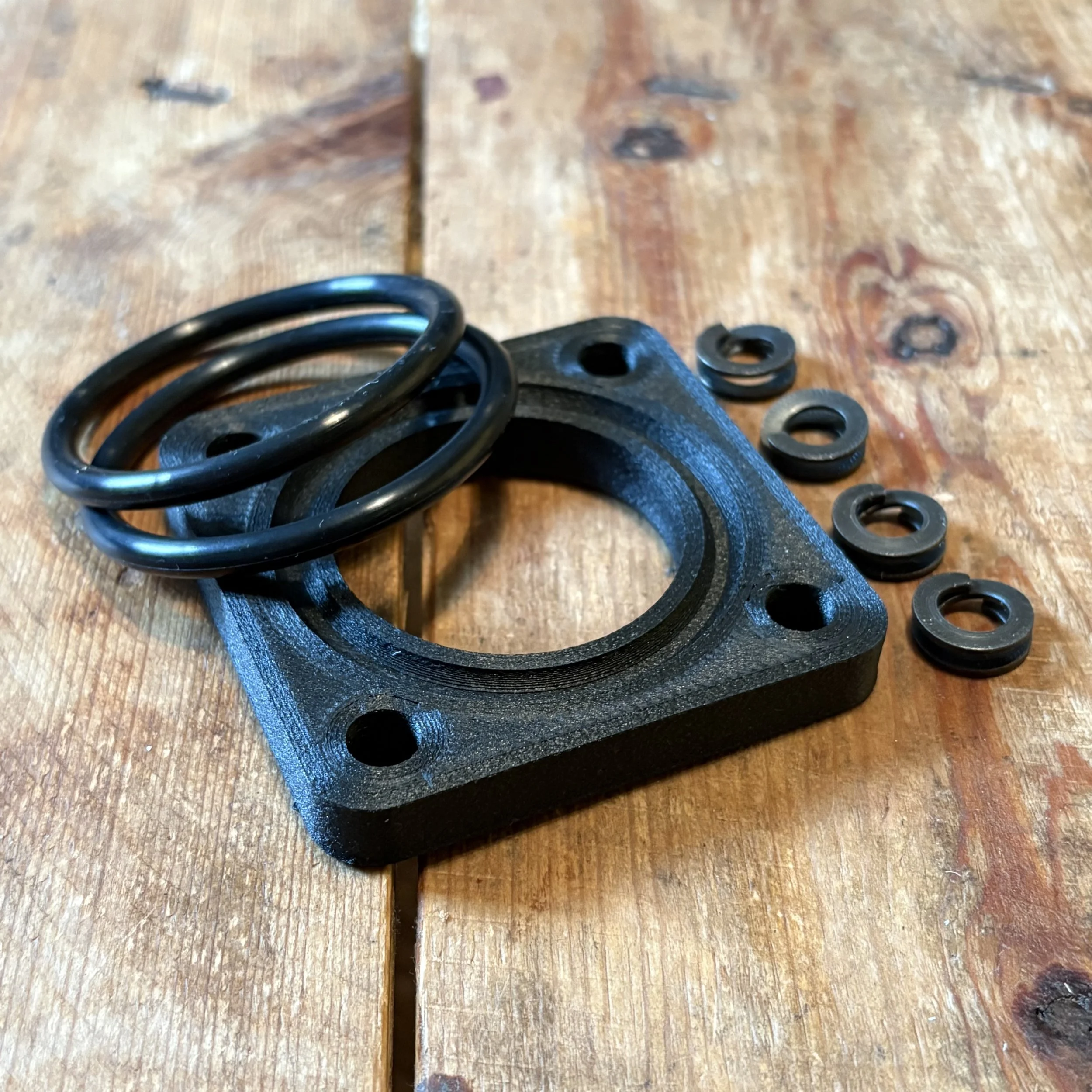

This part is used in the same way a misab plate is used on a weber carburettor. It uses two large o-rings to isolate the carburettor from heat and vibration.
The part comes with 4 thackery washers, which must be used under the fixing heads. The washers must not be completely coil-bound; a gap must exist in the washer so there can be some movement in the carb. Please contact us if you’re unsure of this detail.
NOTE: Longer mounting studs or bolts may be required.
This part is used in the same way a misab plate is used on a weber carburettor. It uses two large o-rings to isolate the carburettor from heat and vibration.
The part comes with 4 thackery washers, which must be used under the fixing heads. The washers must not be completely coil-bound; a gap must exist in the washer so there can be some movement in the carb. Please contact us if you’re unsure of this detail.
NOTE: Longer mounting studs or bolts may be required.
